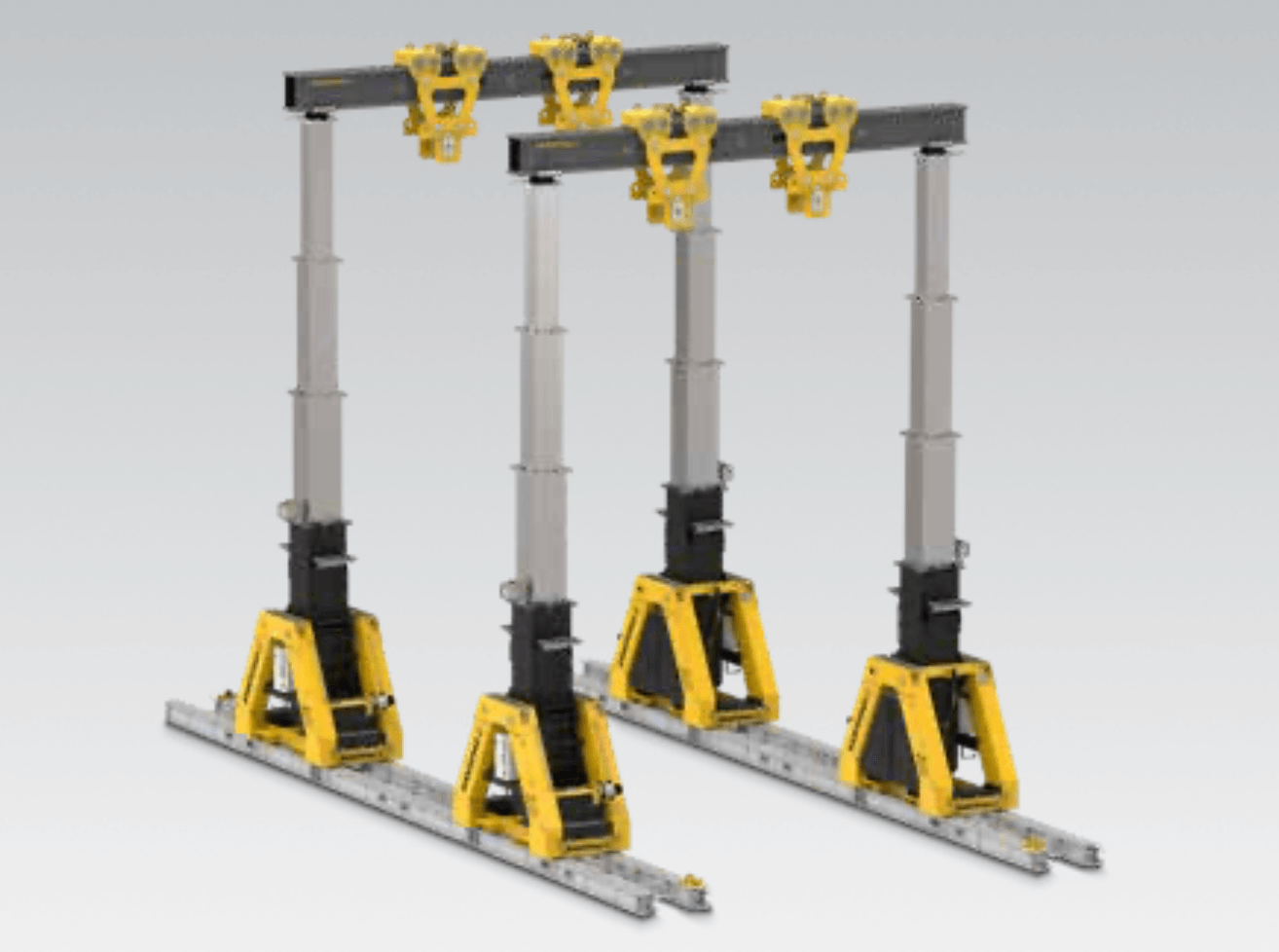

SBL600 Hydraulic Gantry

• Three-stage telescopic hydraulic cylinder with rectangular boom for increased capacity and lifting height
- 34 feet 9⅜ inches (10.6 meters)
• Foldable boom to enable easy transport and setup
- Less than 20,000 lbs per leg (9100 kg)
• Double-acting cylinders with internal retract porting eliminate hazards to external plumbing
• Built-in load holding valves to prevent drifting
• Steel wheels on industry standard 3 foot (914 mm) gauge
• All gantries comply to ASME B30.1, CE, UKCA and other safety standards
• Lloyds witness tested to 125% of maximum working load
• Advanced technology and controls alert operator of unsafe conditions and stops gantry operations
• Wireless Intelli-Lift controls provide automatic synchronous lifting and lowering, along with travel and side shift control

674 tons Capacity
Lift Height Range – 34 feet 9⅜ inches (10.6 meters)
Max Assembled Height – 21.33'
Retracted Height - 14.11'
Weight per leg – 19,842 lbs
